Disclaimer
Please read and understand the contents of this user manual carefully. Failure to read the manual may result in lead to personal injury,inferior results, or damageto the machine. Always ensure that anyone who uses the 3D Printer knows and understands the contents of this manual to make the most out of the 3D Printer.
The conditions or methodsunder which the machine is assembled, handled,stored, used, or disposed of are beyond our control and may be beyond our knowledge. For this and other reasons, we do not assume responsibility and expressly disclaimliability for any loss, injuries,damages, or expensesarising out of or in any way related to the assembly, handling, storage, use, or disposalof this product.
The information in this document was obtained from sources that we believe to be reliable. However, the information is provided withoutany warranty, expressor implied, regarding its correctness.
Intend Use
INTAMSYS 3D Printersare designed and built for fused depositionmodeling of variousfunctional plastics such as PEEK, PEI, ABS, PC, NYLON or TPU within a commercial/business environment. The mixture of precision and speed makes INTAMSYS 3D Printers the perfectmachines for concept models, functional prototypes, and the production of small batches. Although we achieved a very high standard reproduction of 3D models with the usage of Intamsuite, the user remains responsible to qualify and validate the application of the printed object for its intended use. INTAMSYS3D Printers are open platformmachines, meaning you can use any thirdparty filaments, but to get the best results we recommend you use INTAMSYScertified filaments, as they are customized for made for INTAMSYS 3D Printers.
¶ 01 SAFETY AND COMPLIANCE
¶ Safety
¶ Movement Safety

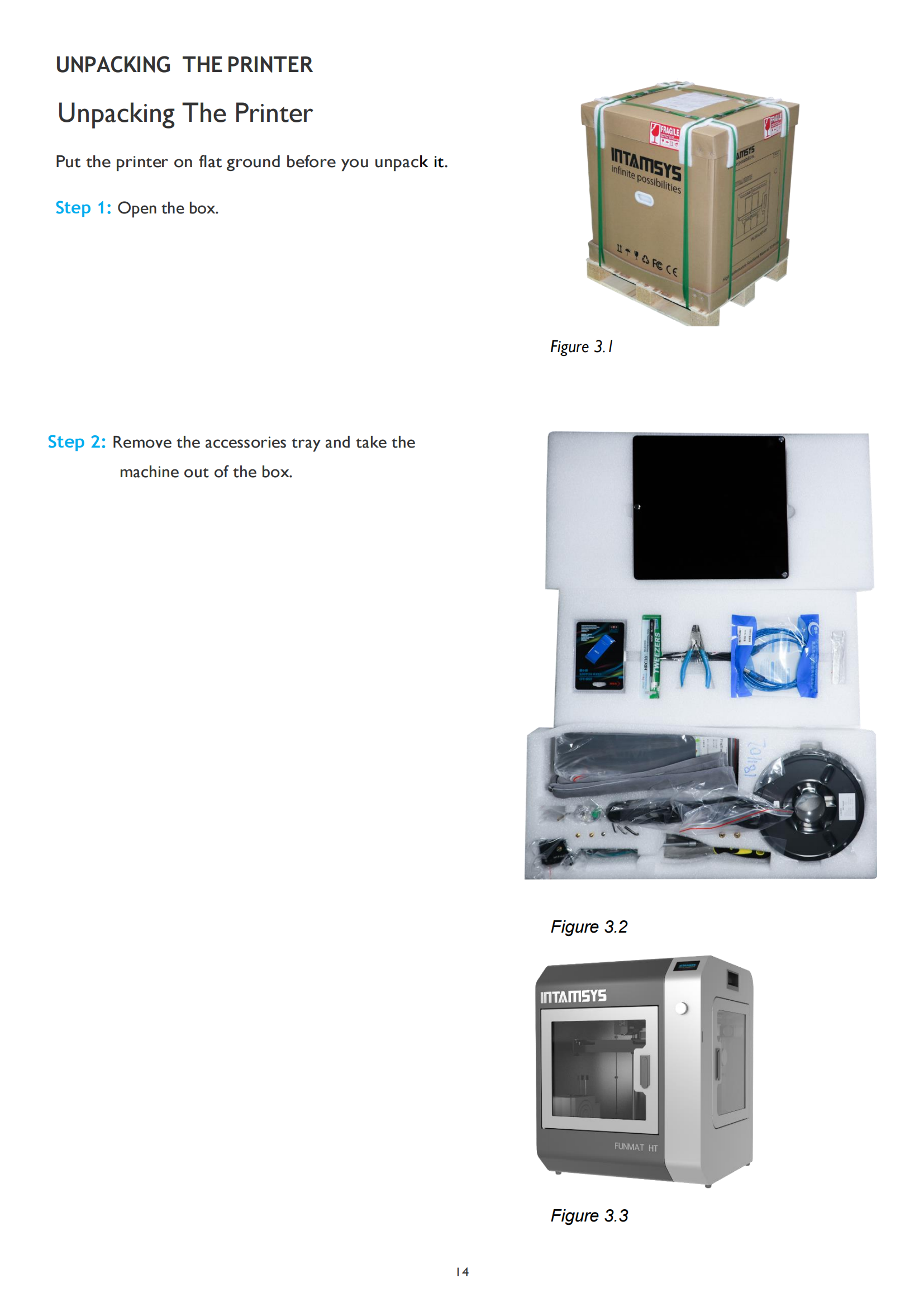

The machine is very heavy, so when unpacking the machine or moving the machine from one location to another, always use another person’s assistance. Additionally, keep the machine on a flat ground with enough space on all sides to operate the machine without any difficulty.
¶ Electrical Safety
The power supply meets all CE regulations and is protected against short-circuits, overloading, over voltage, and overheating. Make sure you only use the power supply cable you received from INTAMSYS.
¶ Mechanical Safety
The machine has many moving parts, but the stepper motors do not have enough power to cause serious injuries. Still, we advise you to only reach into the machine when it is turned off.
¶ High Temperature Safety
FUNMAT HT comes with an all-metal nozzle, high-temperature build plate, and heated chamber. When printing functional materials with a chamber temperature of up to 90℃, the heat transmits to the outer frame, so we advise you not to touch the machine during the printing process. The nozzle can reach temperatures of up to 450℃, and the heat bed can reach temperatures of up to 160℃ during the printing process. Thus, we strongly advise you not to touch the nozzle & heat bed when the printer is working. Additionally, let the printer cool down before opening the front door or the top door of the machine.
¶ Hazards
Safety alert symbols precede each safety message in this manual. These symbols indicate potential safety hazards that could harm you or others or cause damage to the product or property.
- Warning: Do not leave the machine unattended during operation.
- Warning: Always power off the printer before doing any maintenance.
- Warning: Do not touch the nozzle or the heat bed when the printer is in operation.
- Warning: After the print is done, using gloves to take out the objects.
- Warning: The machine includes moving parts that can cause injury. Never reach inside the machine while it is in operation.
- Warning: There is a risk of electrical shock, do not touch any electrical parts when power on.
- Caution: In case of emergency, disconnect the machine from the wall socket.
- Caution: The machine melts plastic during printing, and thus emits plastic odors. Make sure to set up the machine in a well-ventilated area.
Please visit our website www.intamsys.com to learn more about support.
¶ 02 INTRODUCTION
INTAMSYS is an industrial 3D Printer manufacturer renowned for its “world’s most affordable PEEK 3D Printer” ， FUNMAT HT. It has offices in Shanghai, Dongguan, and Nanjing, with resellers present across the world.
¶ About Intamsys
INTAMSYS (Abbreviation of INTelligent Additive Manufacturing SYStems) is an industrial-grade 3D printers’ manufacturer specialized in high performance engineering thermoplastics 3D printing. The company was founded by a team of engineers with in-depth experience and know-how in engineering high-precision industrial machinery and equipment.
The company’s state-of-the-art FUNMAT 3D Printers are designed for high performance functional materials 3D printing at affordable prices. FUNMAT is the abbreviation of functional materials. INTAMSYS is committed to the highest manufacturing design and quality standards where all INTAMSYS 3D printers have received FCC and CE certifications. Today, INTAMSYS is trusted globally by customers from aerospace, medical, automotive and research institutions, etc.
Please visit www.intamsys.com for more information.
¶ Contact Details
There are multiple ways to reach out to INTAMSYS as we have a strong online presence.
- E-mail: Send an e-mailto info@intamsys.com or support@intamsys.com, and we will
- respond within 24 hours Phone: +86-21-5846 5932
- Facebook: http://www.facebook.com/intamsys
- Website: https://www.intamsys.com
- Skype: intamsys
- Twitter: https://twitter.com/intamsys_3d
- Linked ln: https://www.lin kedin.com/organization/16240248/

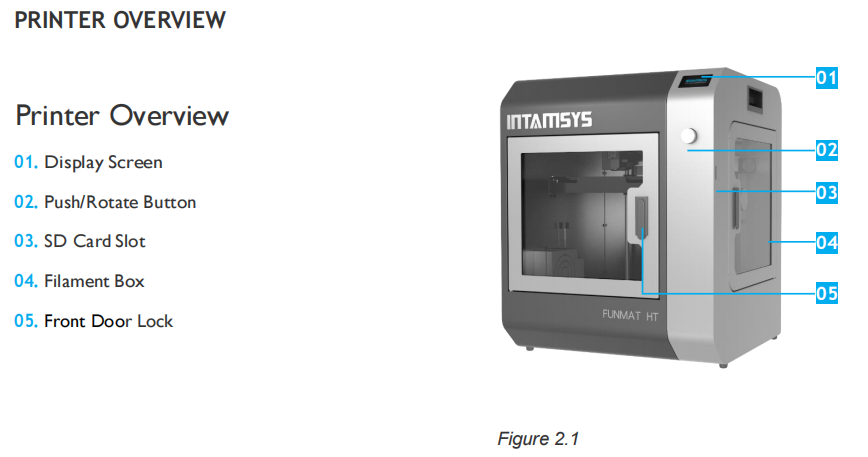

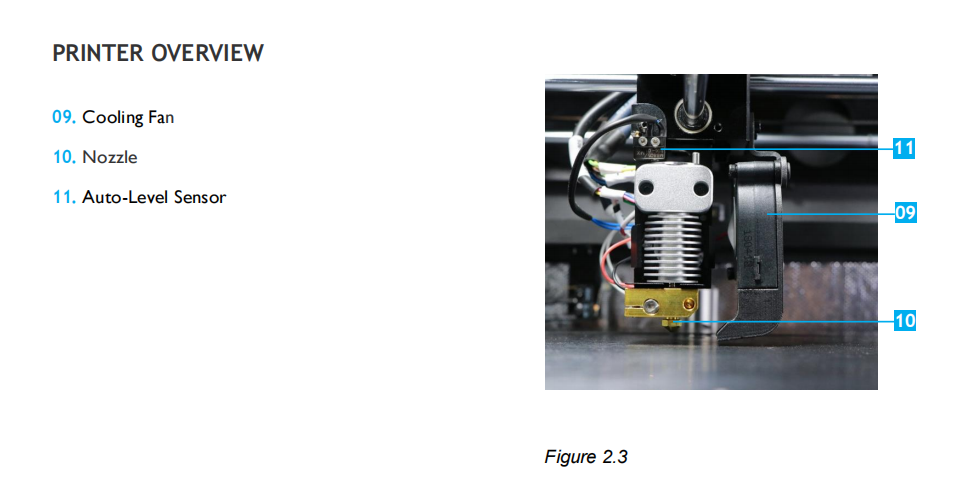

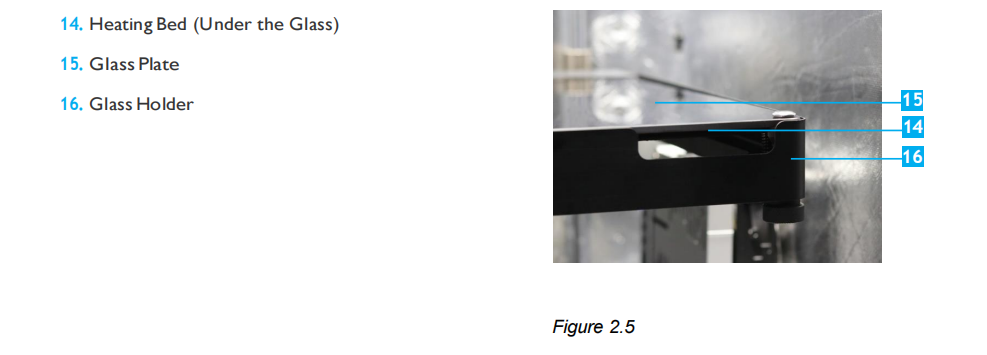

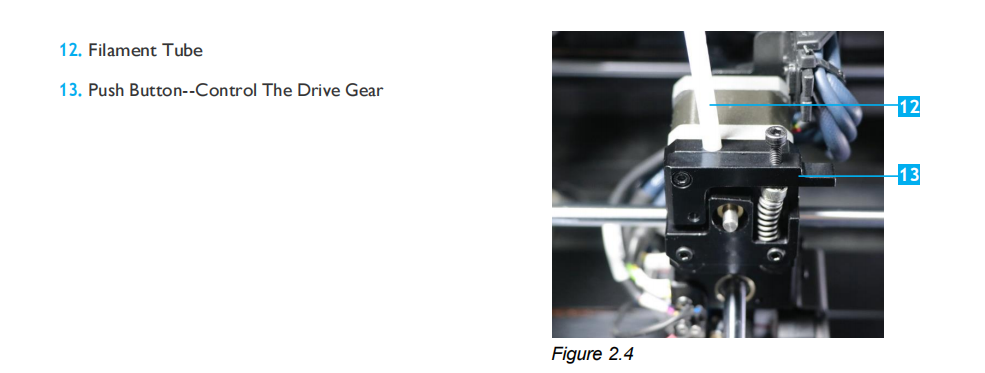

¶ Printer Overview

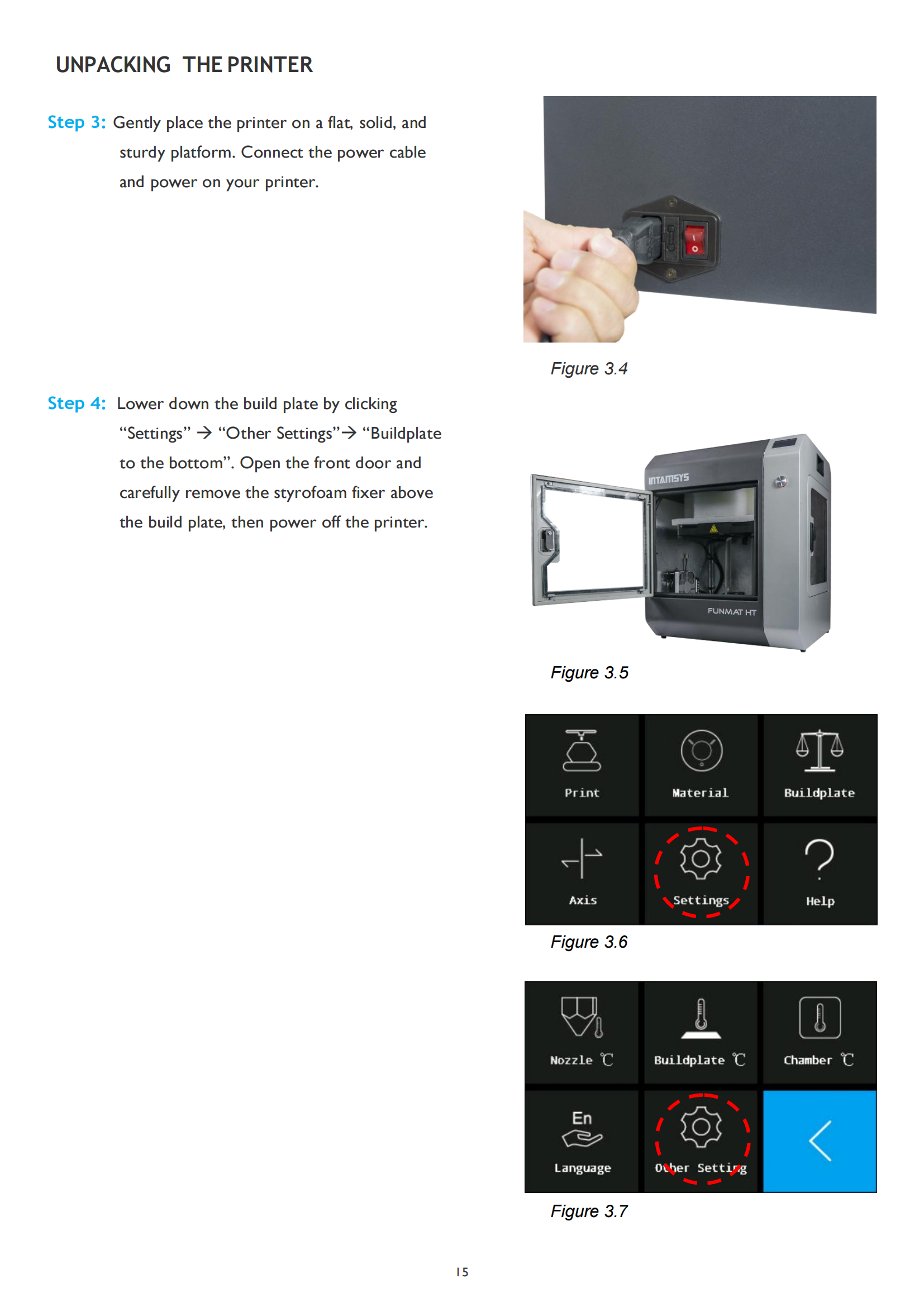

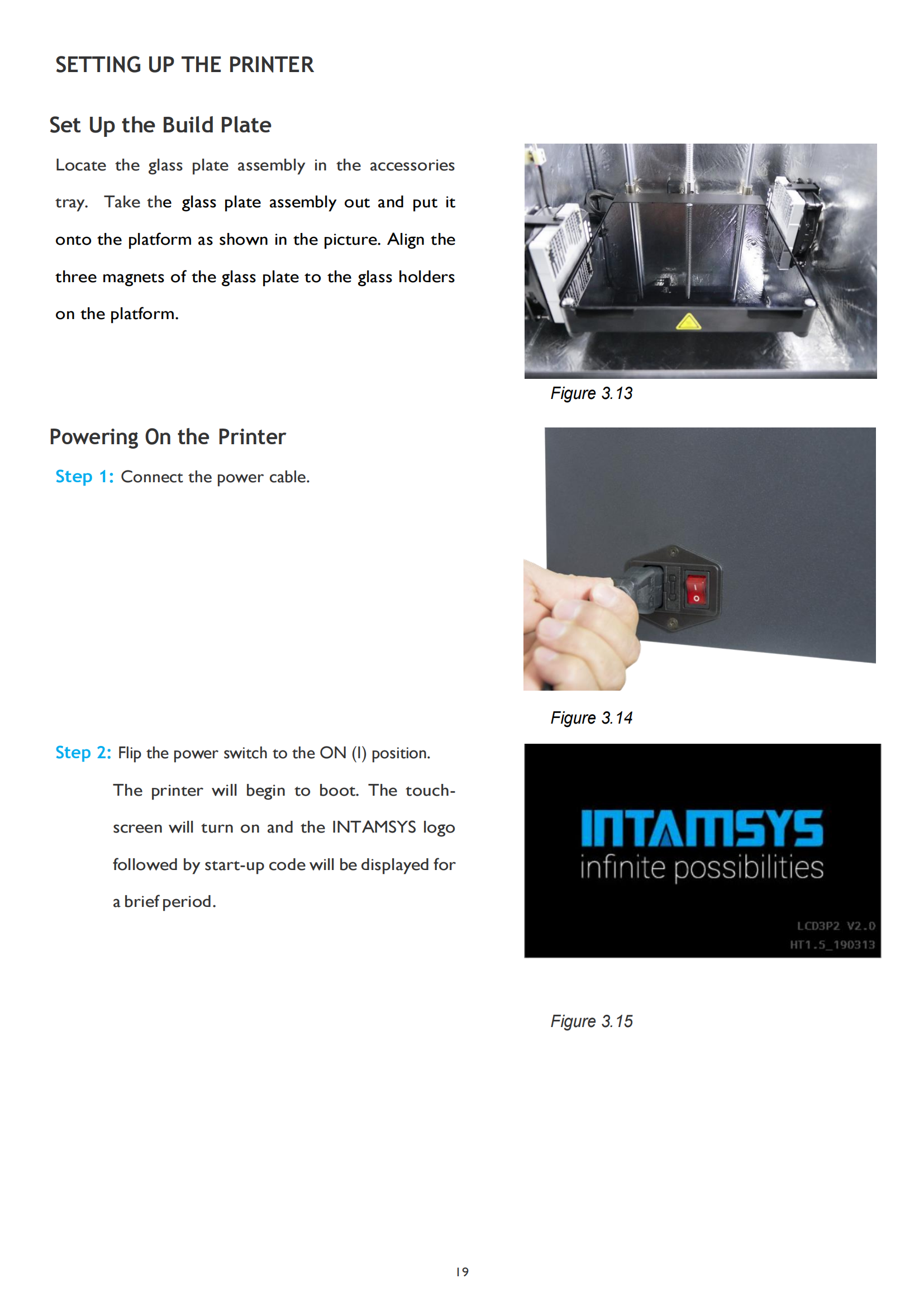

¶ 03 Getting Started

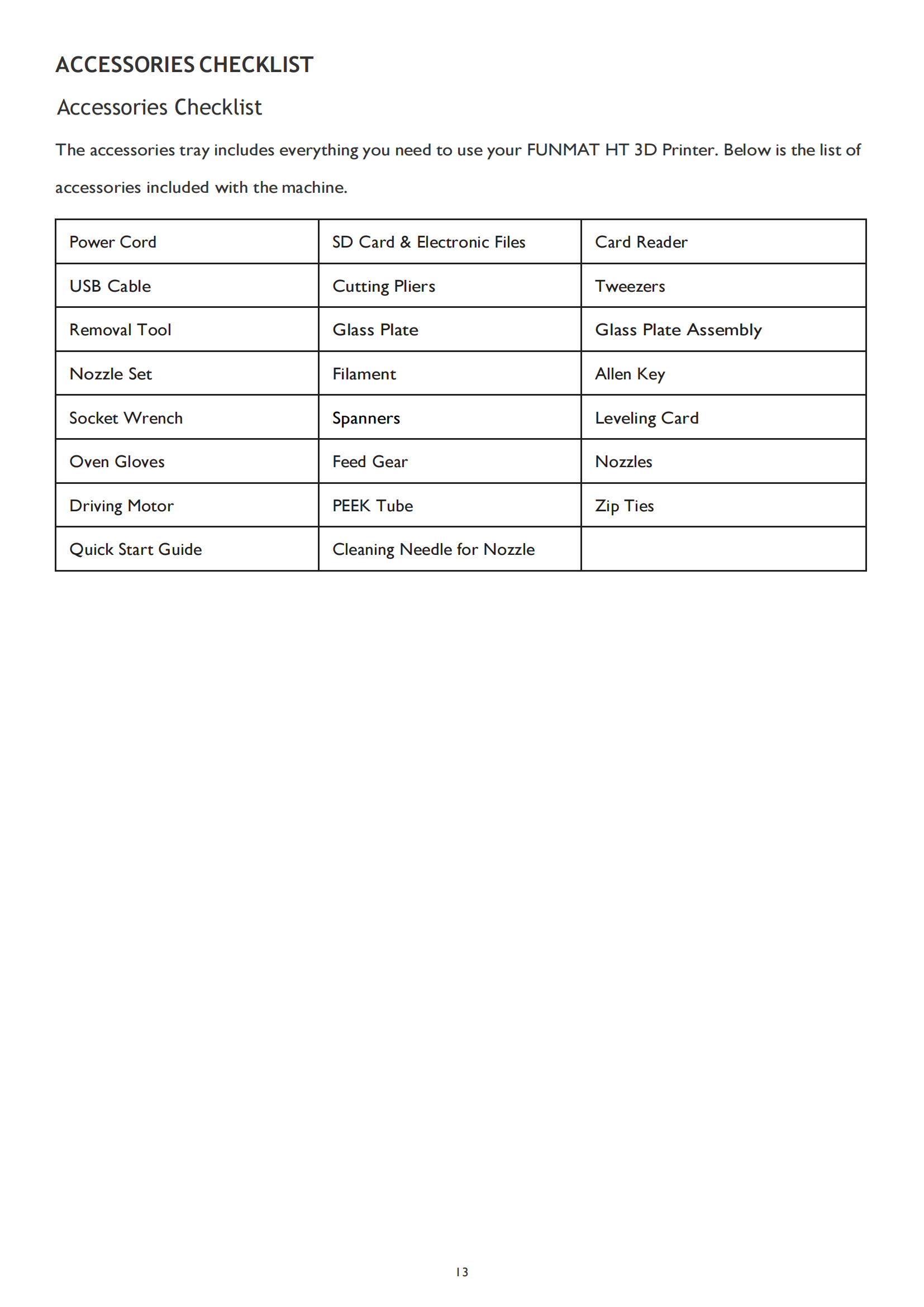

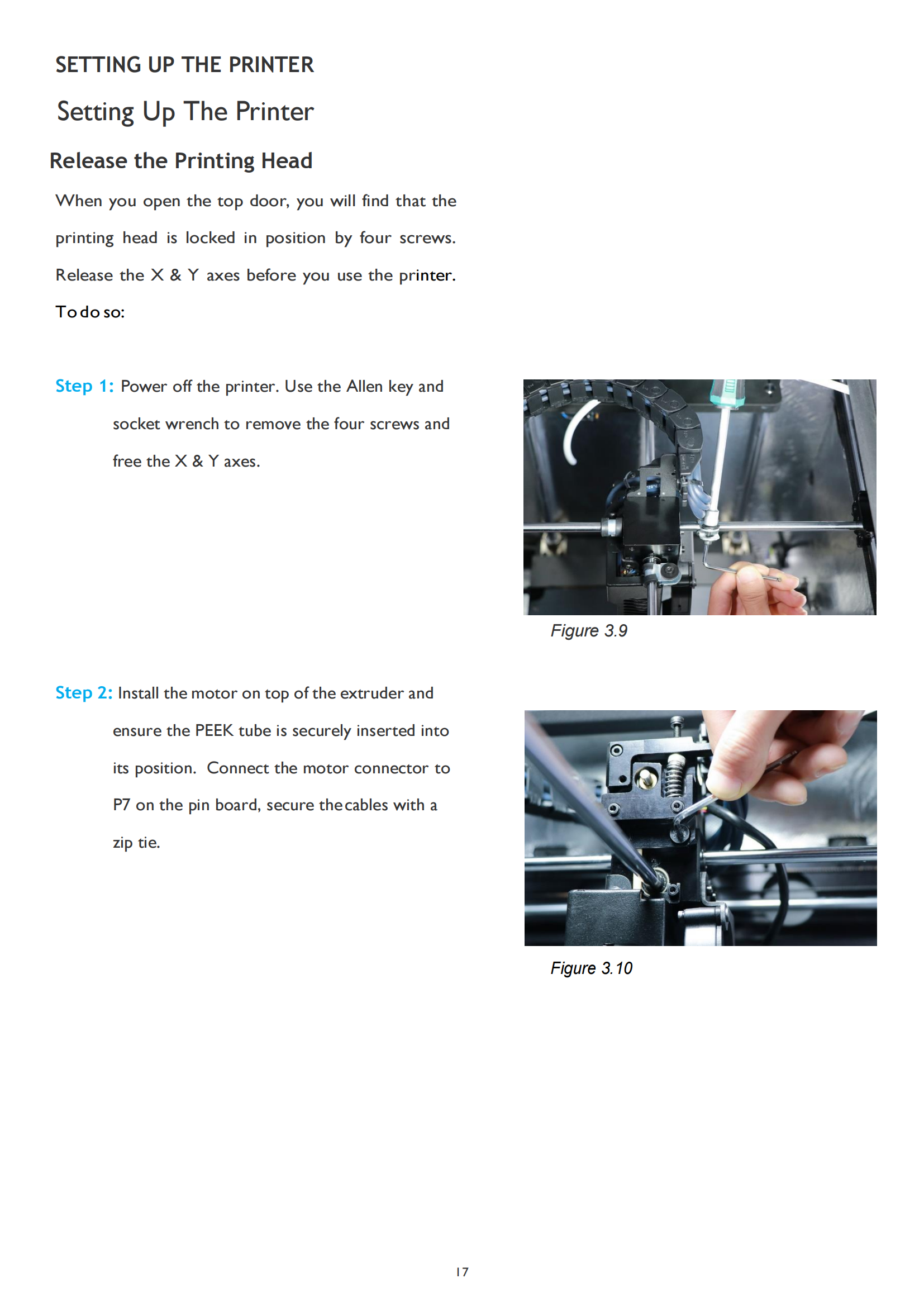

In this chapter you will find information on accessories, components of 3D Printers, and setting up your machine.

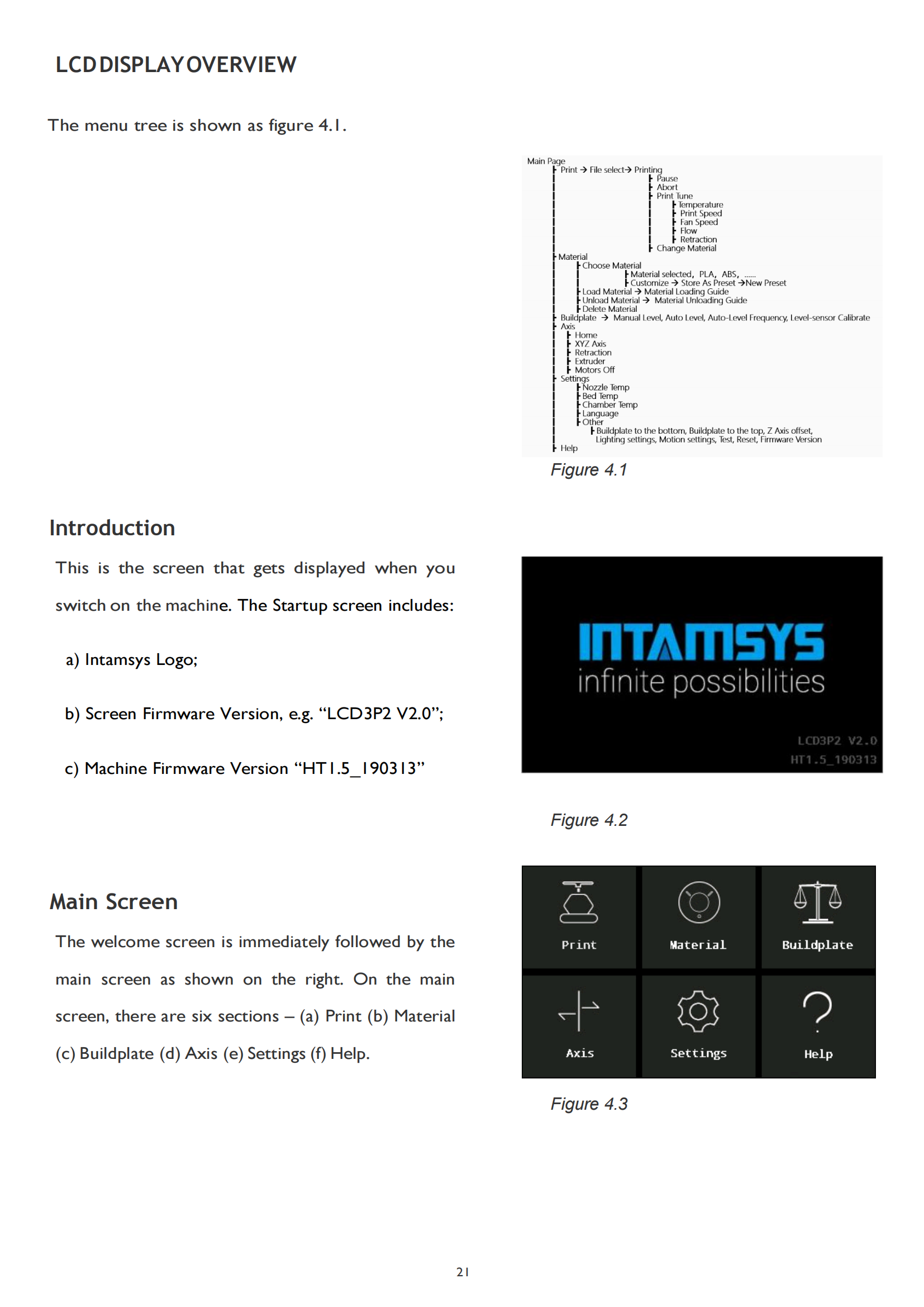

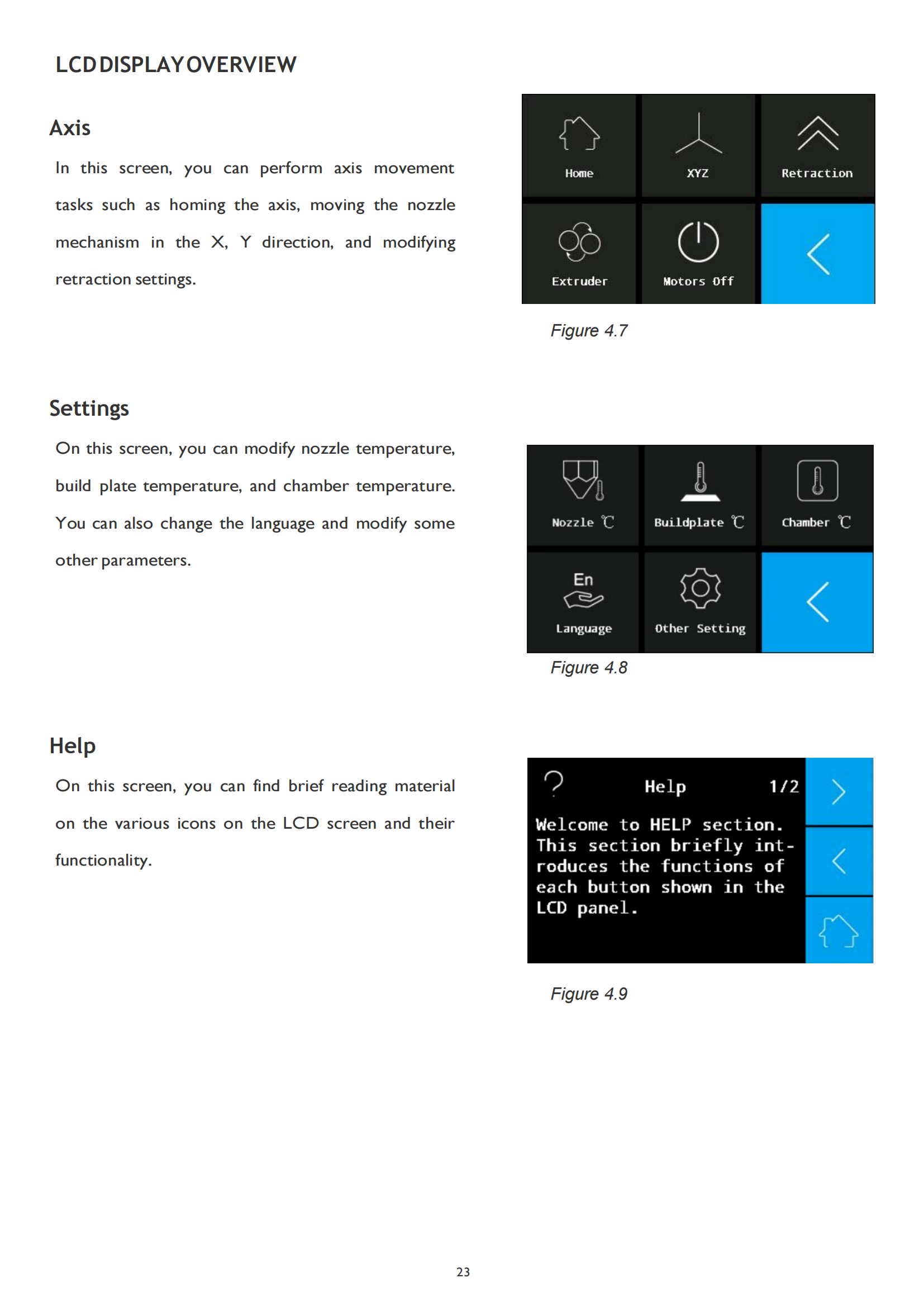

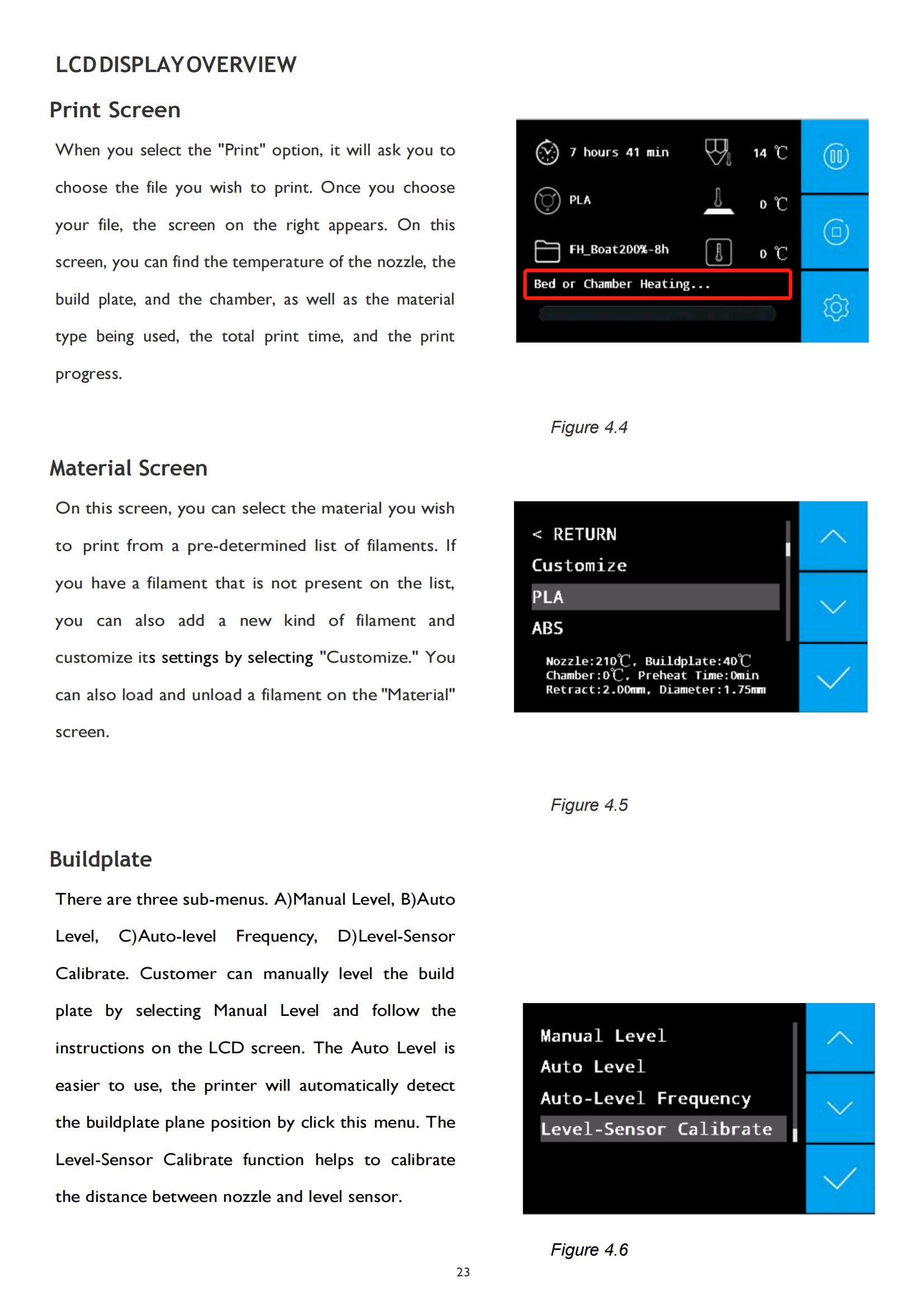

¶ 04 LCDDISPLAYOVERVIEW

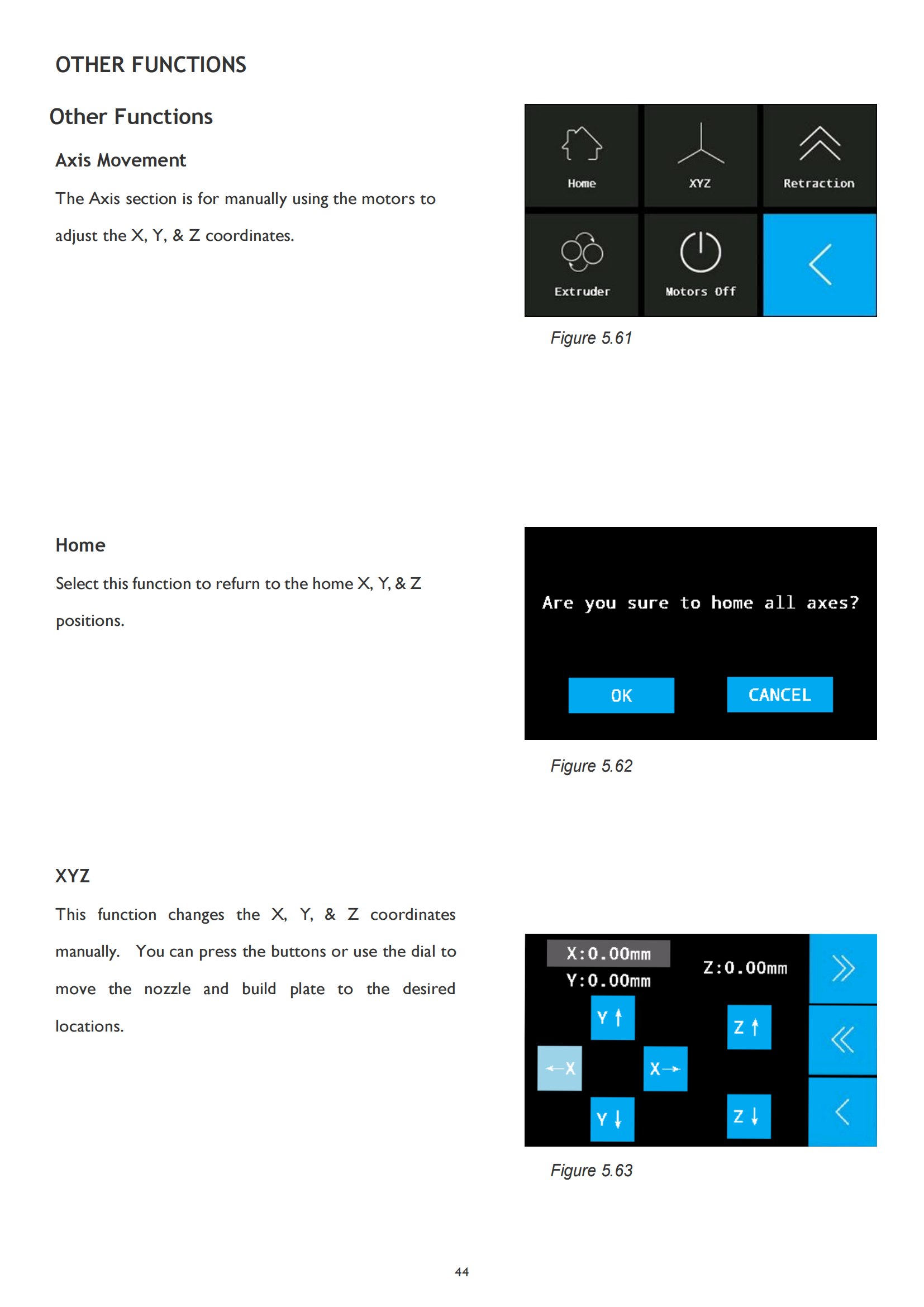

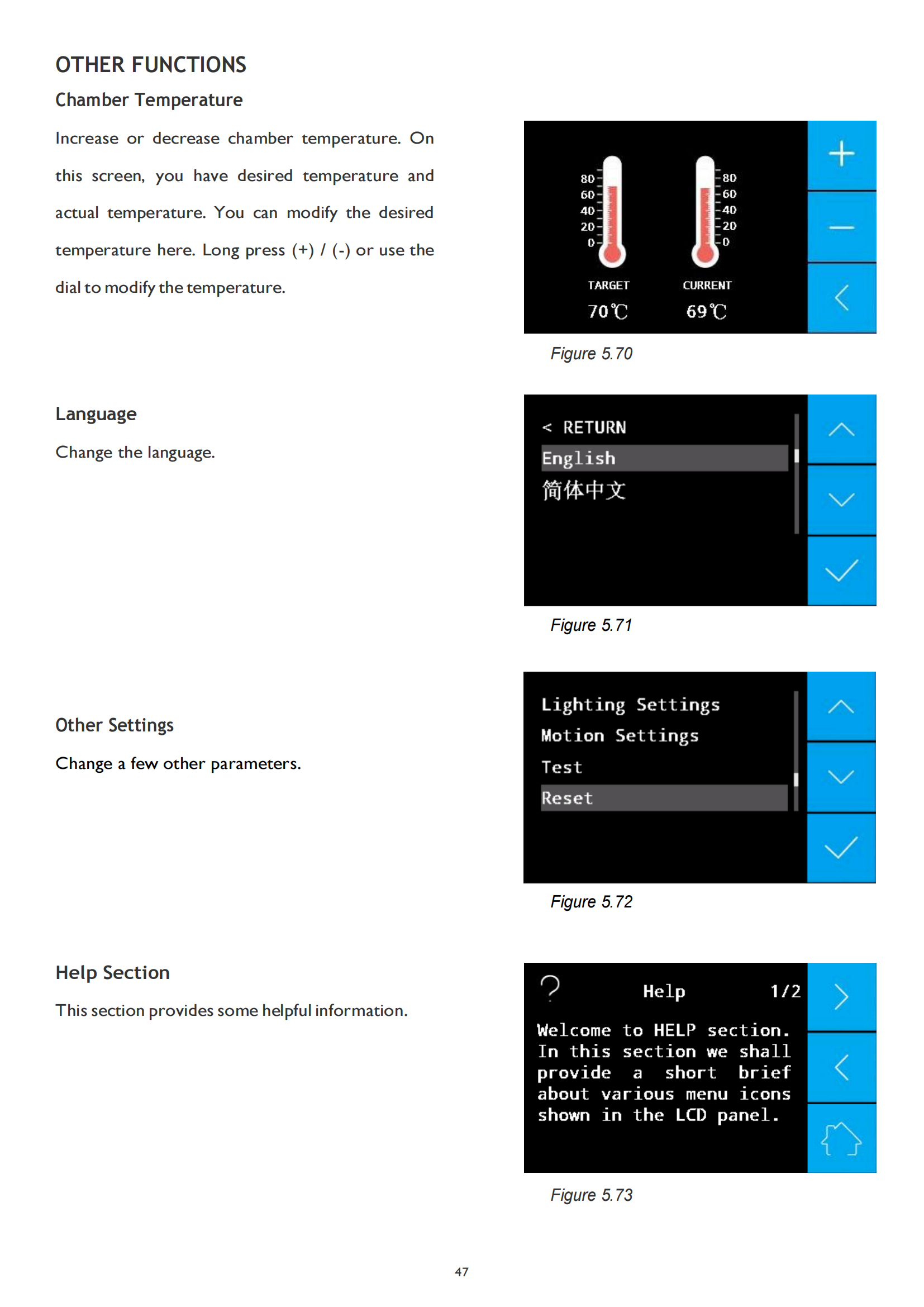

The LCD Display can be broadly divided into seven sections. In this chapter, you will find a brief overview of the LCD Display.

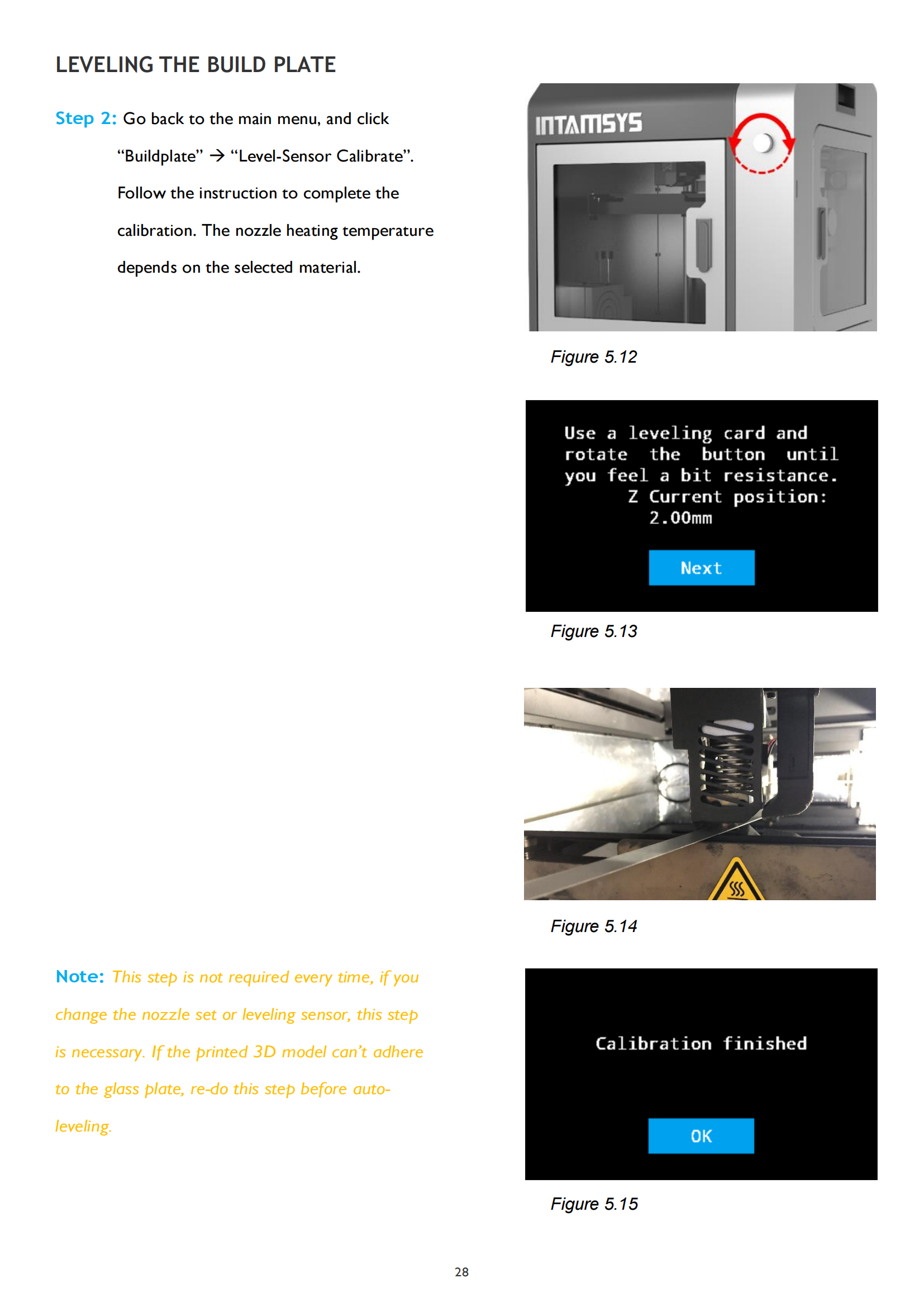

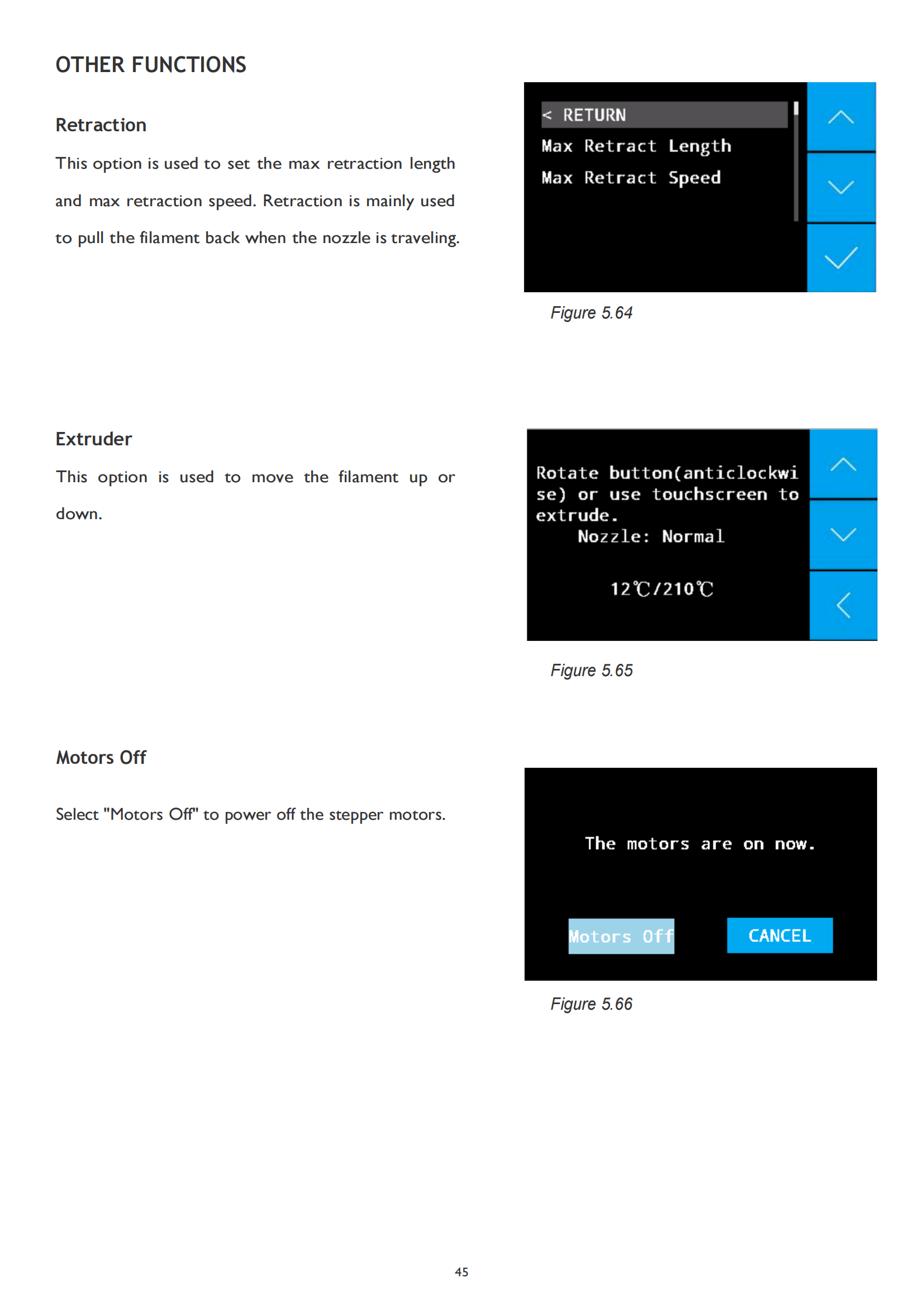

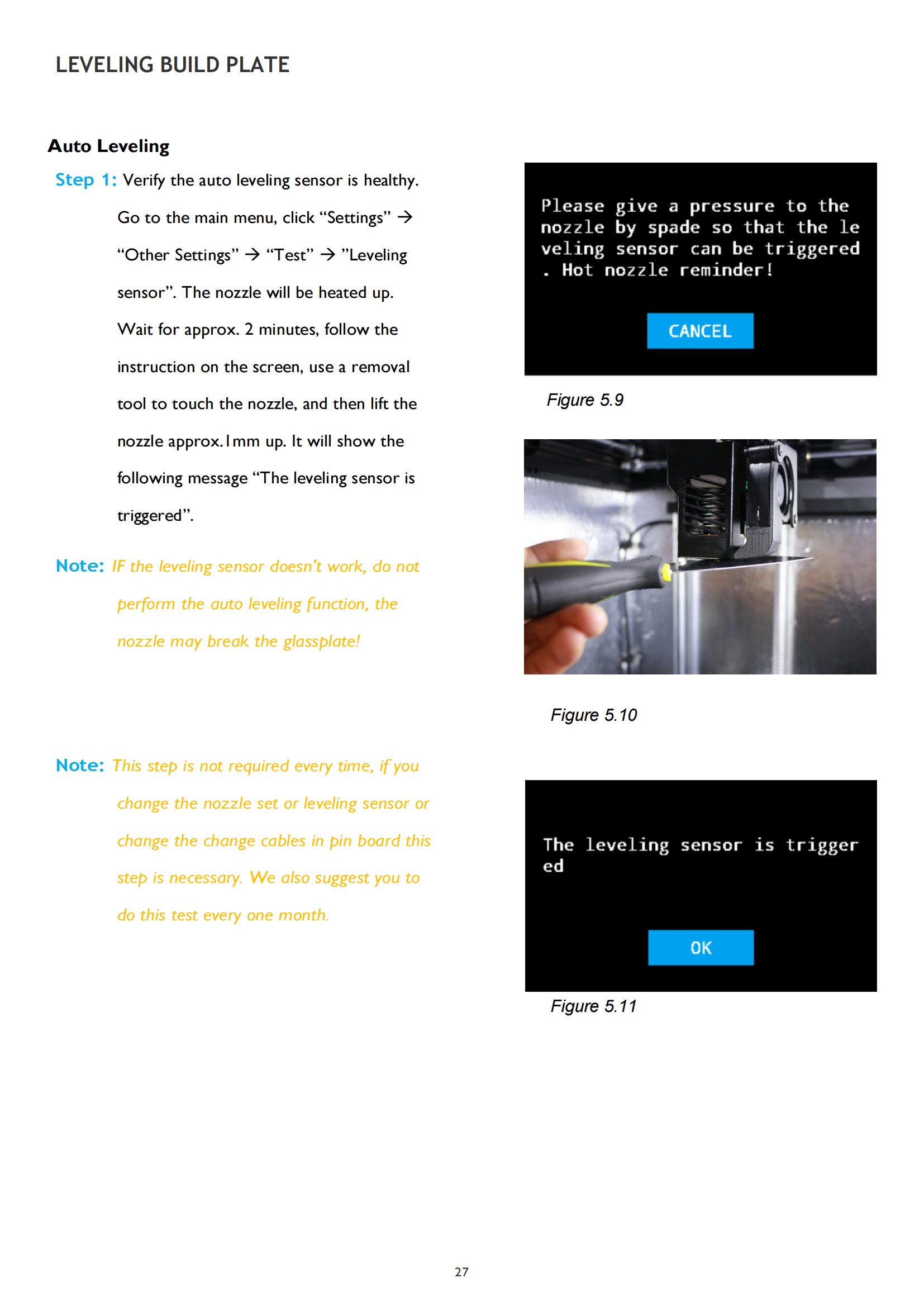

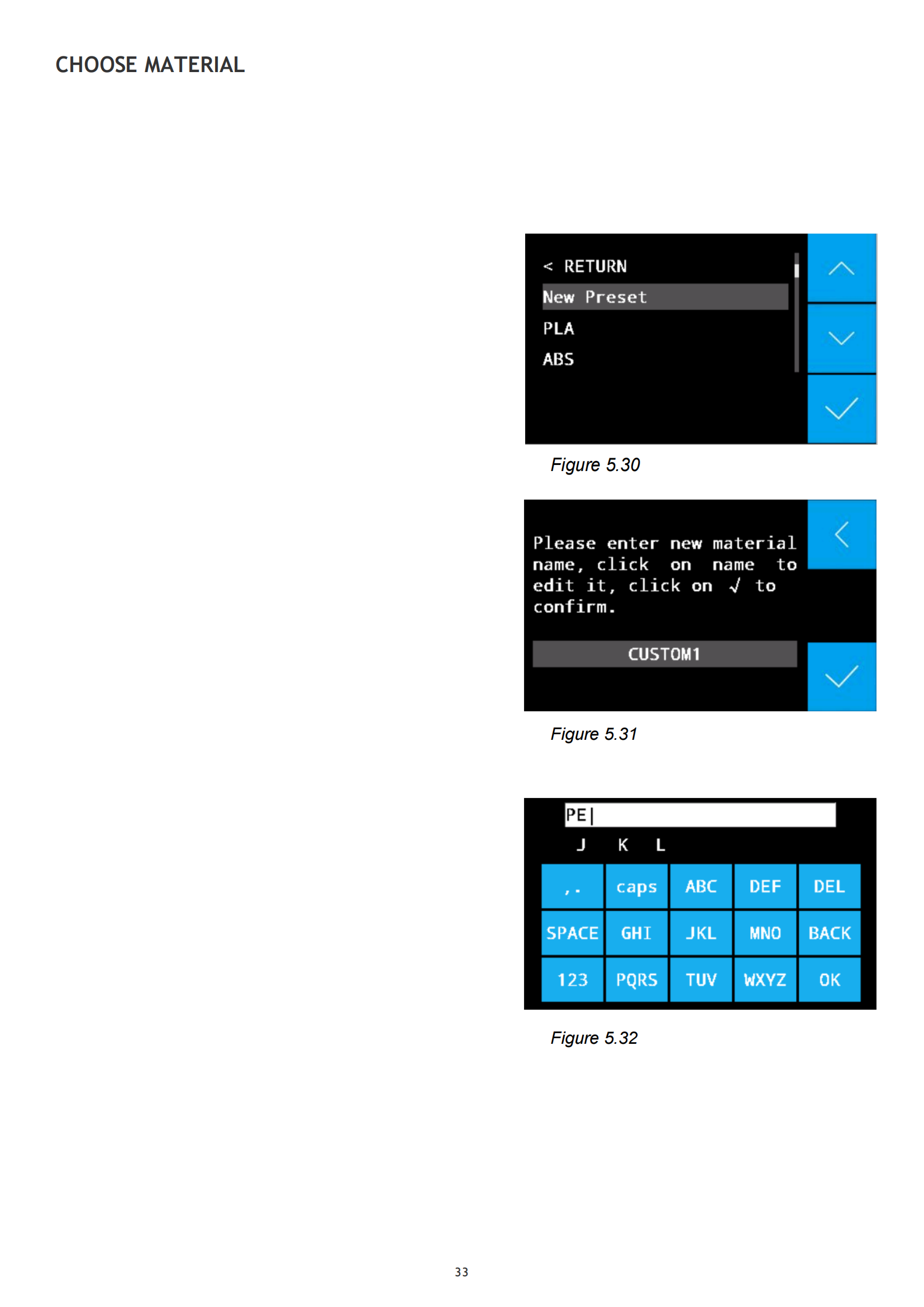

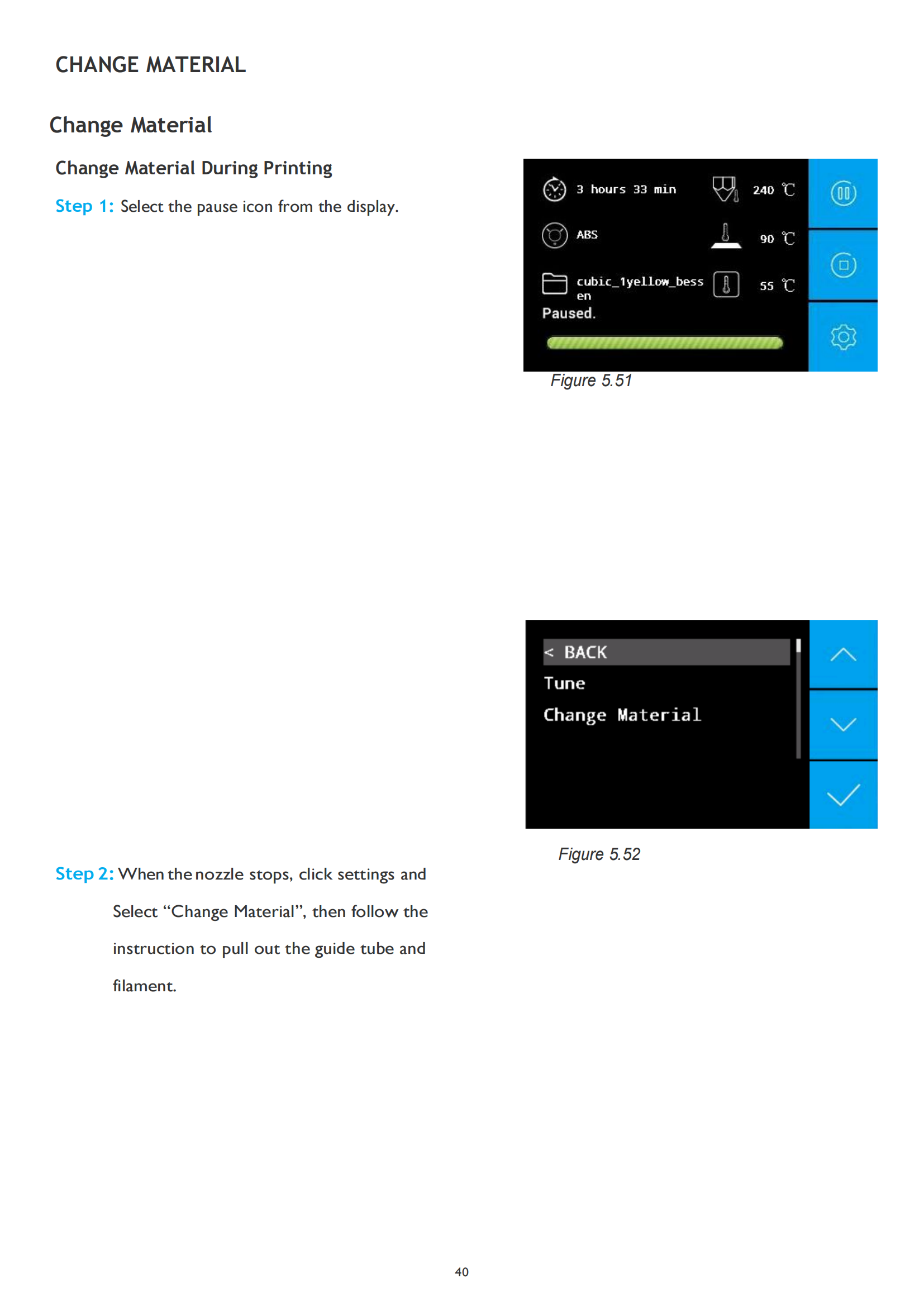

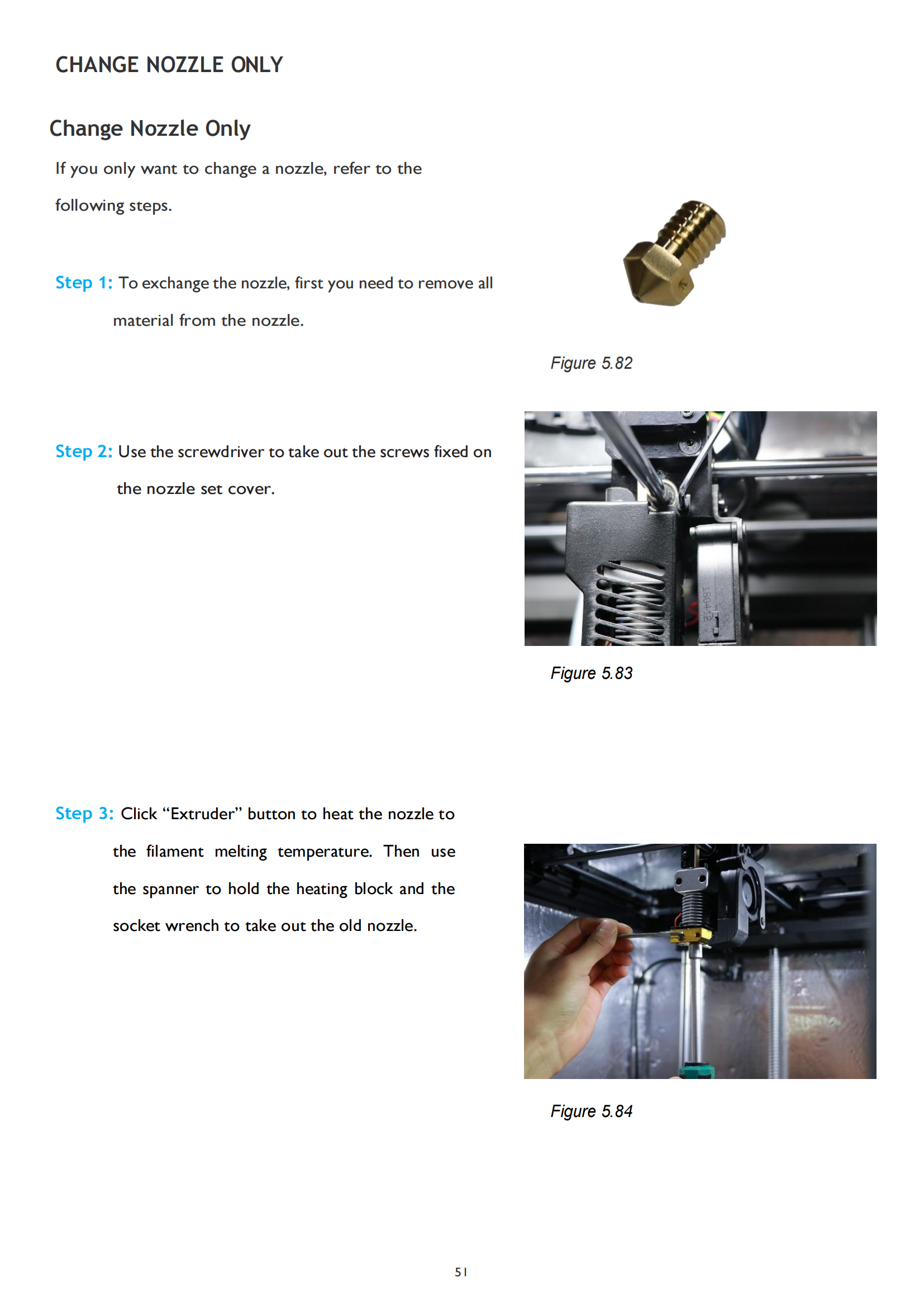

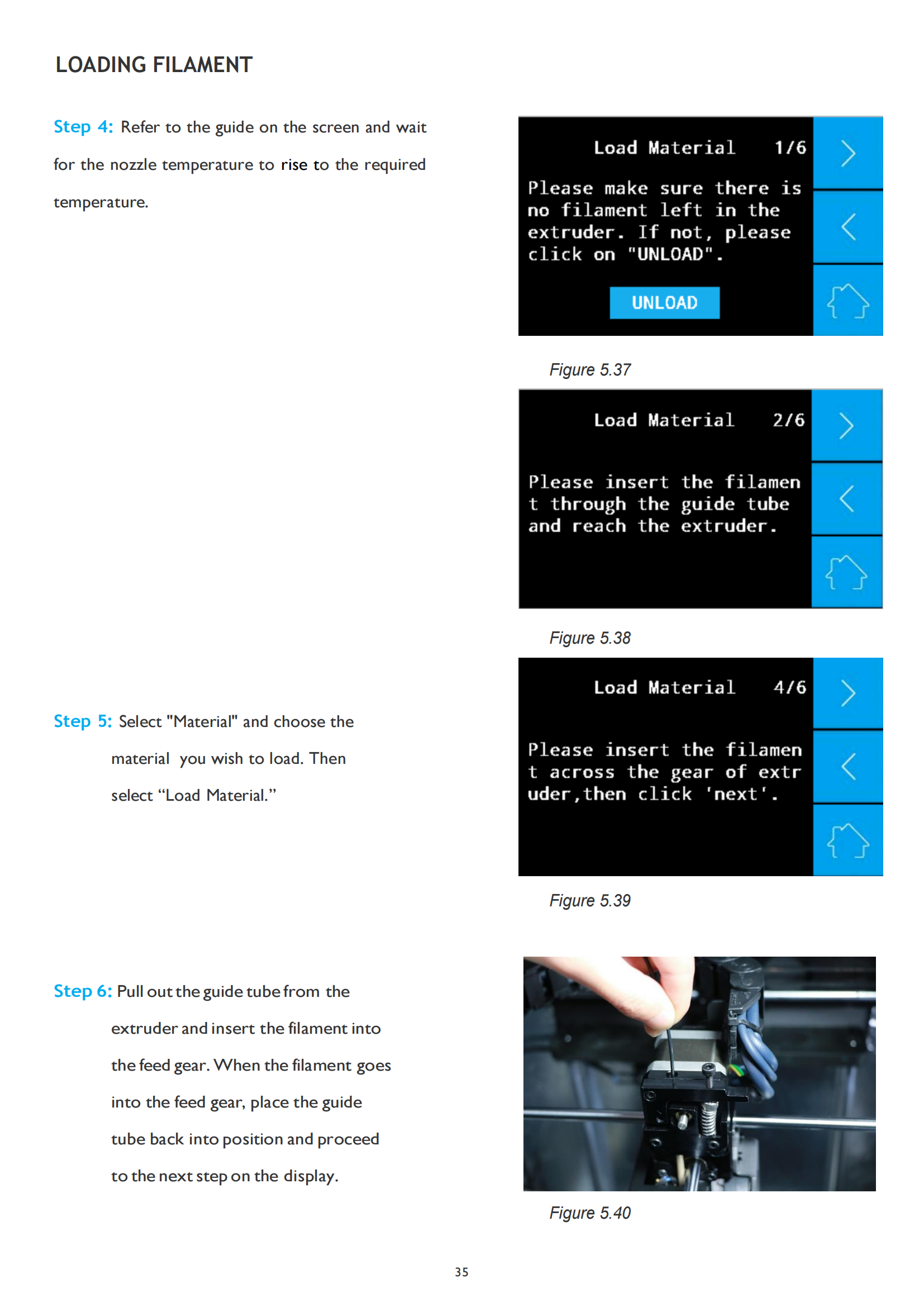

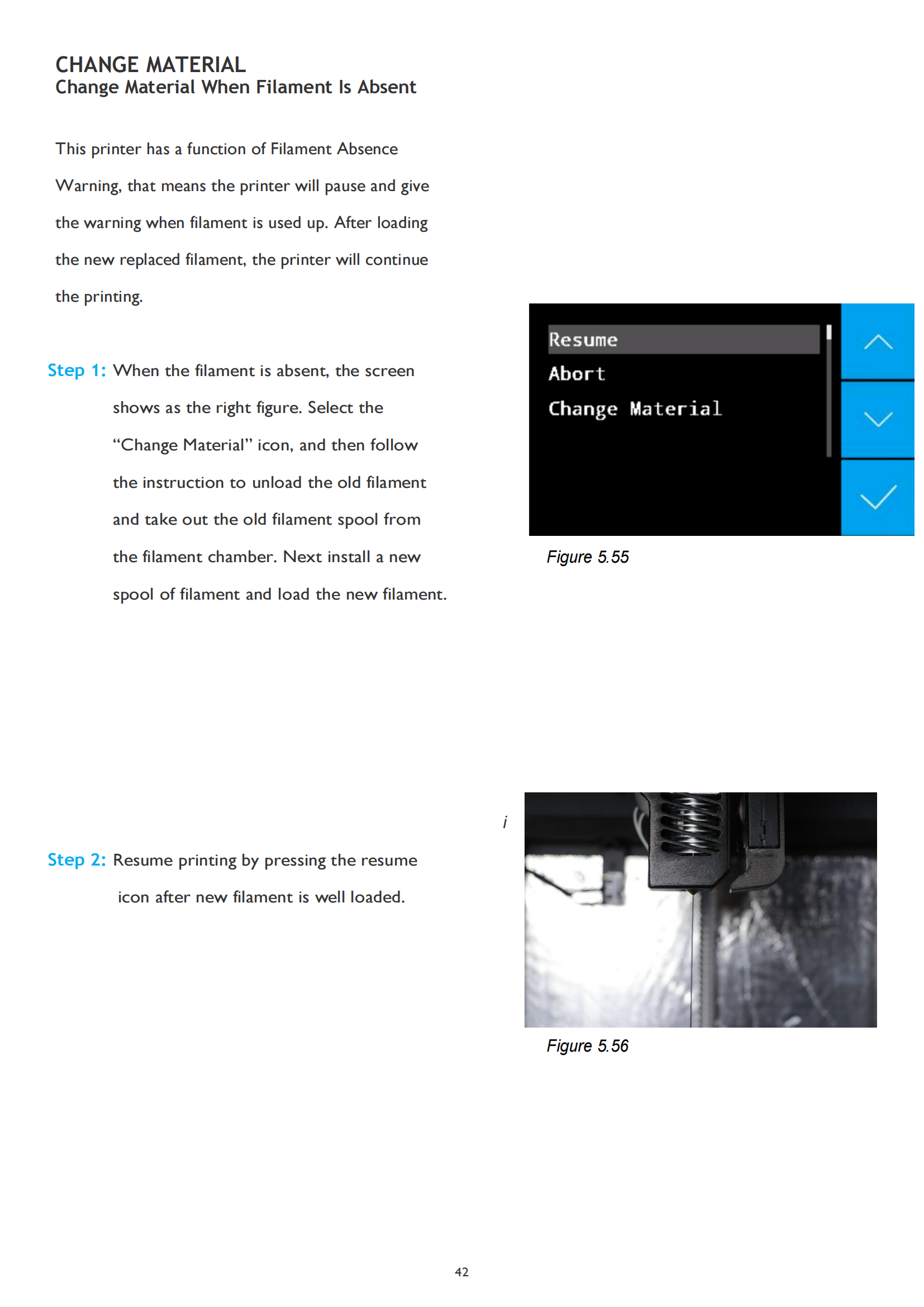

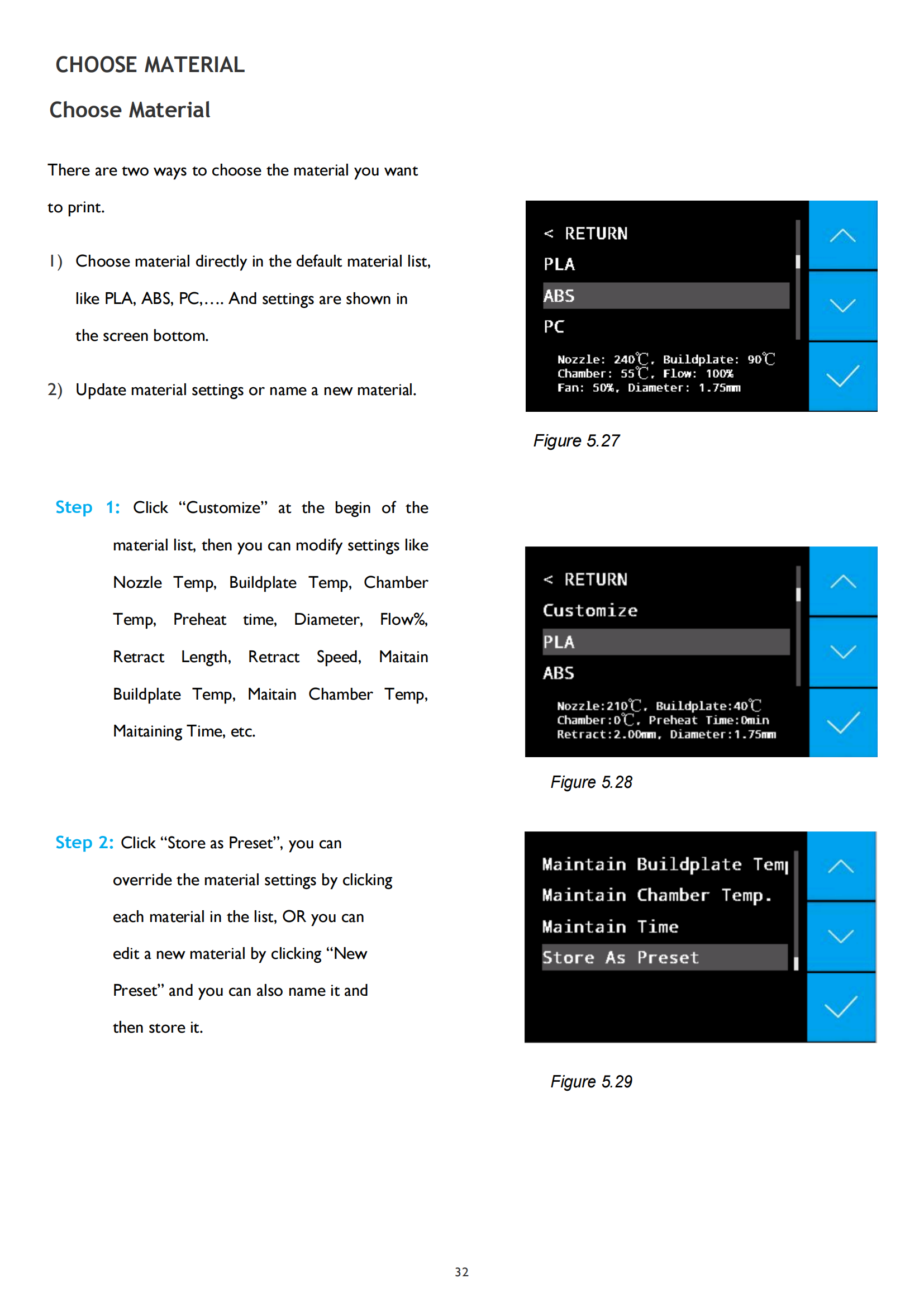

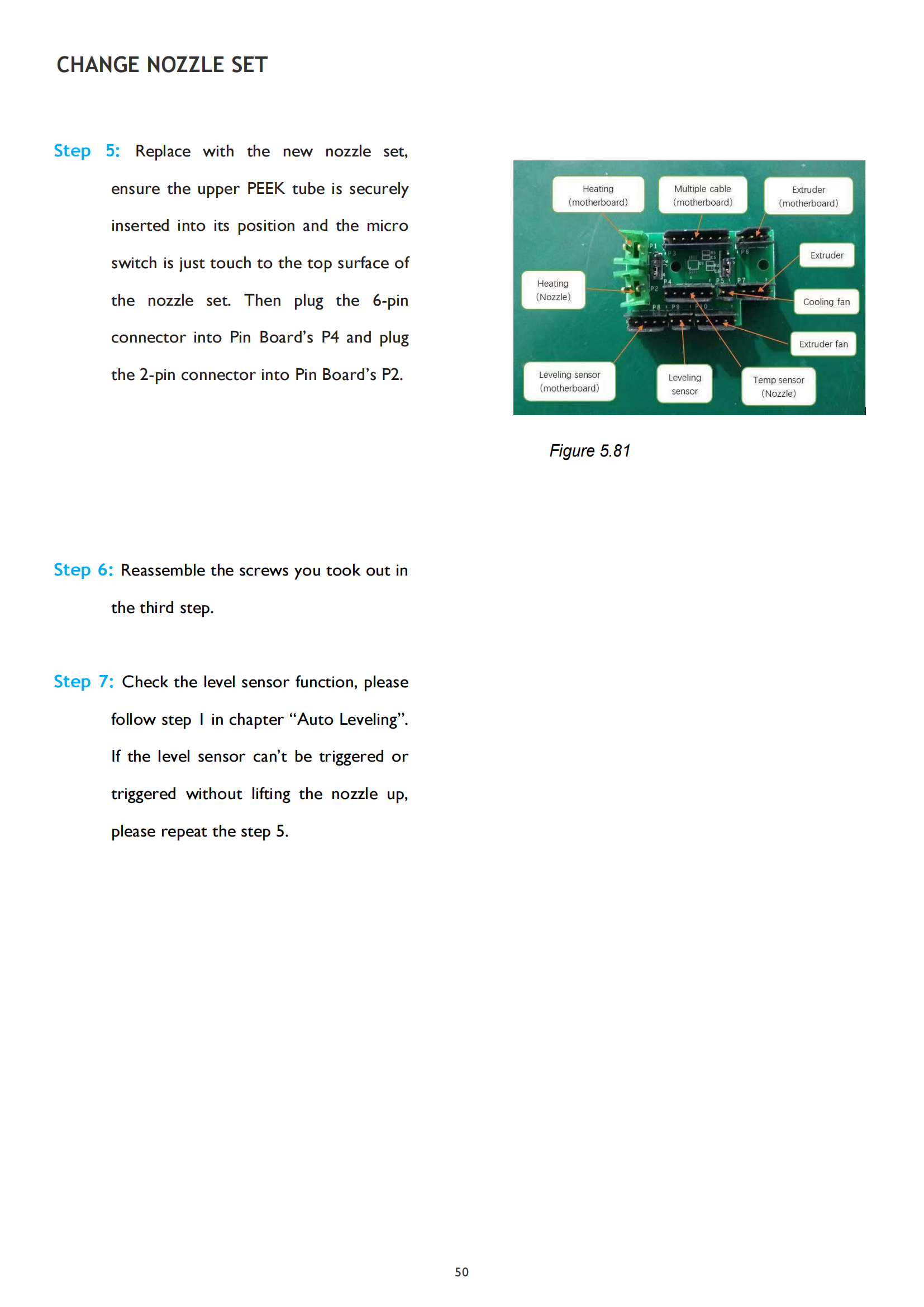

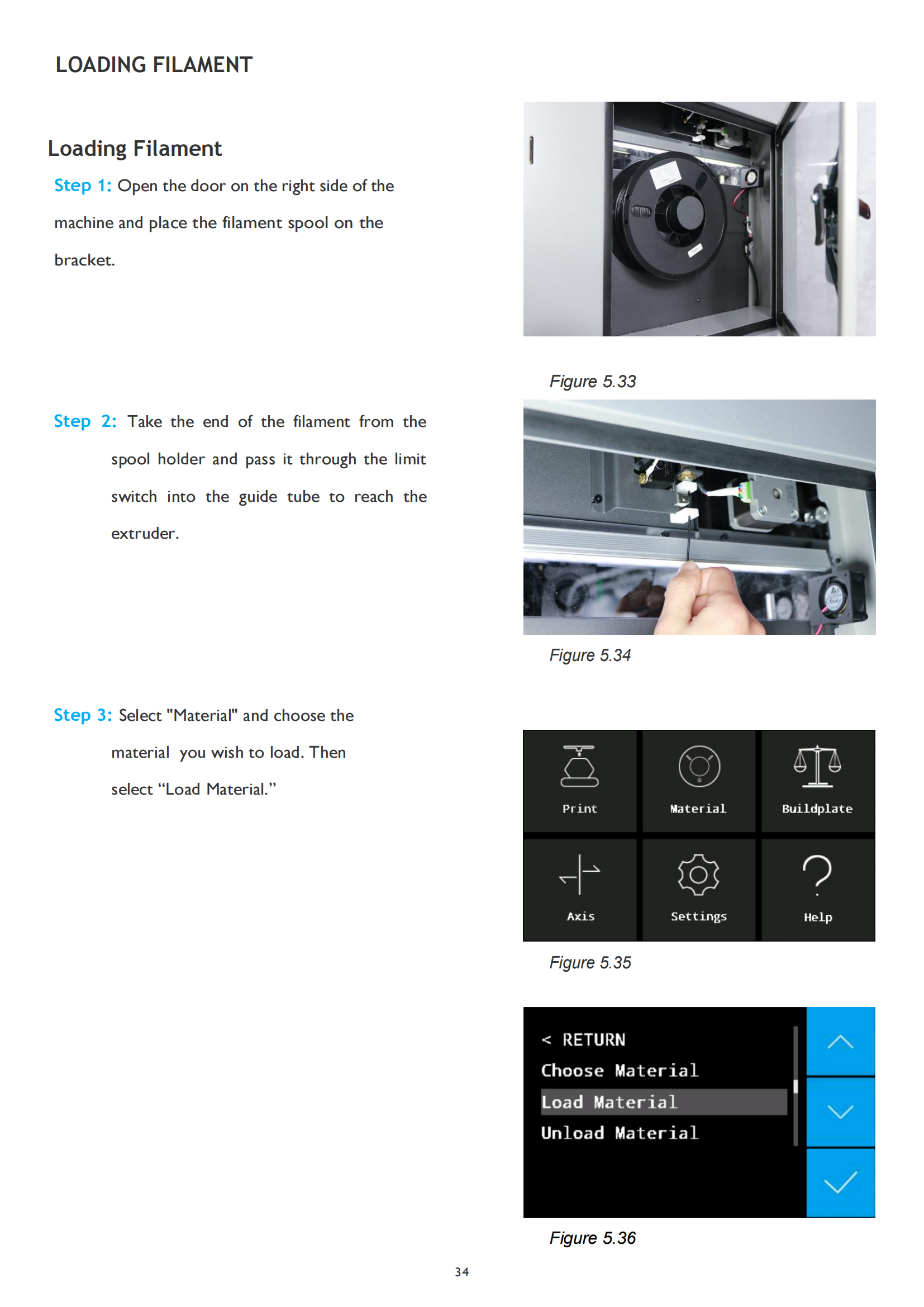

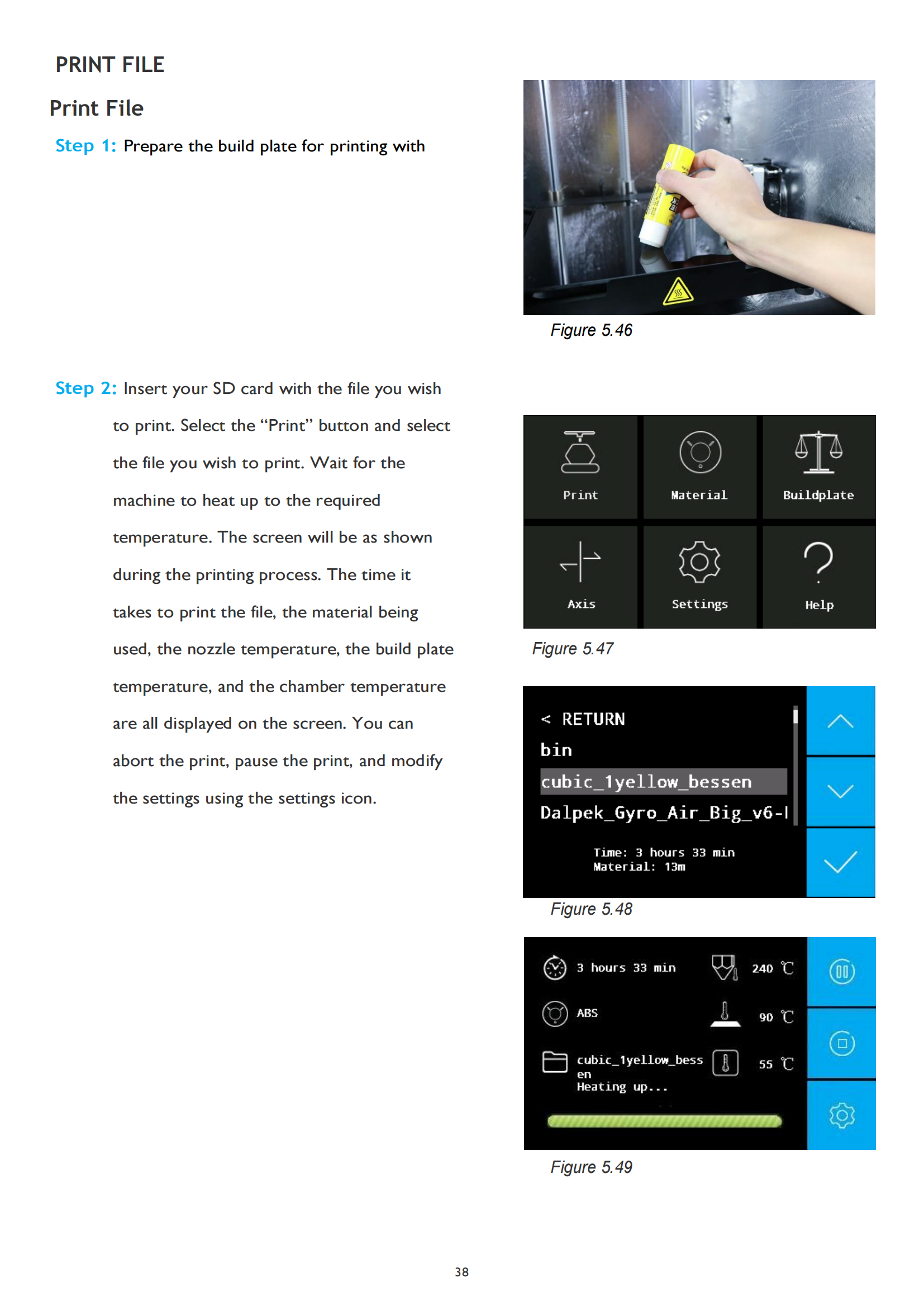

¶ 05 REGULAR OPERATION
This chapter provides information about regular day-to-day usage of the printer.
